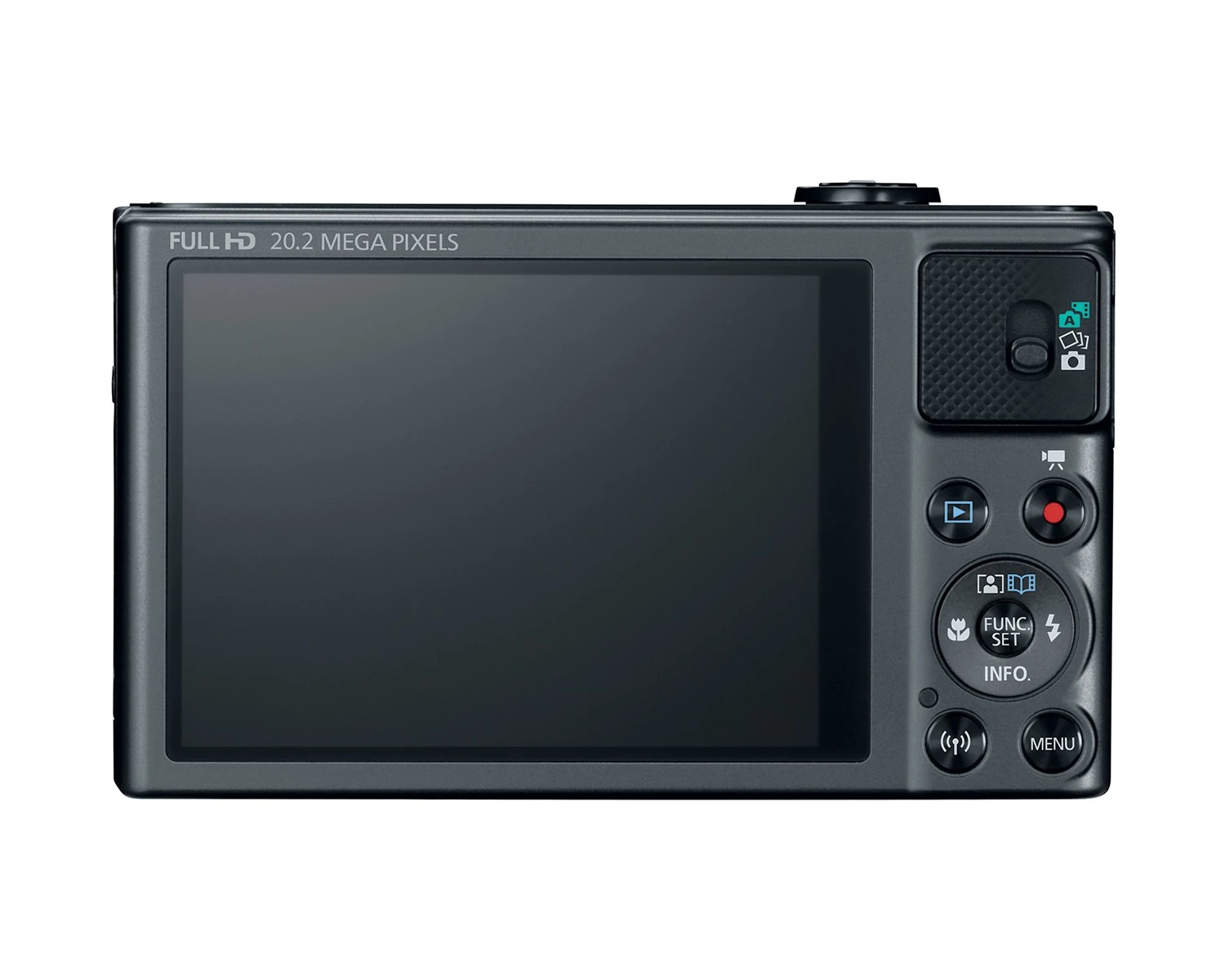

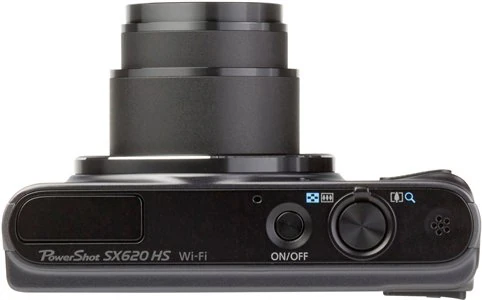

PowerShot SX620 HS


Builds for firmware 1.00B and 1.00C are available from the Download page. Use the porting thread for questions and bug reports.



Specifications:

20.2 Megapixel*, ISO 80-3200

1/2.3-inch CMOS, TTL Autofocus

3.0-inch TFT Color LCD with wide viewing angle

Still Image: EXIF 2.3 (JPEG) Video: MP4 (Image: MPEG-4 AVC/H.264; Audio: MPEG-4 AAC-LC (Monaural))

Firmware ver.: 1-15.0.1.0 ( it was checked by connecting the camera to the PC by USB, then clicking with the right button on it to see the properties.)

Reviews and Specifications

Technical Data

  • Digic 4+ image processor
  • DryOS operating system
  • Sensor: 20MP - 1/2.3" BSI-CMOS Sensor
  • Lens: 25-625 mm (35mm equiv), F3.2-6.6 Zoom Lens

Comparison to other SX600s:

https://en.wikipedia.org/wiki/Canon_PowerShot_S

Model Release

date

Sensor

resolution, size, type

Lens (35 mm equiv)

zoom, aperture

Image processor LCD screen

size, pixels

Card Size

W×H×D
(mm)

Weight

(body, g)

SX600 HS 2014 16.0 MP

4608×3456
1/2.3" CMOS

25–450 (18×) f/3.8–6.9 DIGIC 4+ 3.0" fixed

461,000

SD, SDHC, SDXC 103.8 × 61.0 × 26.0 188
SX610 HS January 2015 20.2 MP

5184x3888
1/2.3" CMOS

3.0" fixed

922,000

105.3 × 61.0 × 26.7 191
SX620 HS May 2016 25-625 (25x)

f/3.2-6.6

96.9 x

56.9 x

27.9

182

Platform - ID numbers in hexadecimal / decimal code

P-ID Hex -- Dec Model Img. processor OS Year
32C3 --12995 SX620HS DIGIC IV+ DRYOS version 2.3, release #0058+p7 2016

https://chdk.fandom.com/wiki/P-ID_(Table)

Firmware Dumps - Download location for firmware dumps:


Download location for firmware dumps:
P&S firmware dumps mirror

Porting thread https://chdk.setepontos.com/index.php?topic=13426.20
