CHDK is available for the Powershot N and Powershot N Facebook® Ready in CHDK 1.3.0 or newer.

The Canon Powershot N was released in January 2013.

The Canon 'Powershot N Facebook® Ready' was released in August 2013? It is basically the same camera as the Powershot N but with a change to the WiFi button that allows it to automatically connect to Facebook rather than a local PC.

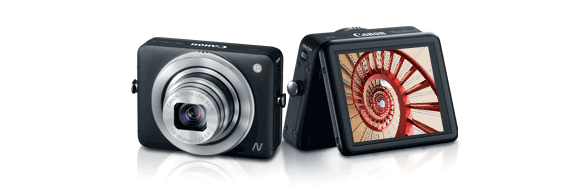

N blk 586x186


Technical Data[]

Camera Specifications: Canon USA Powershot N Specifications

  • Digic V image processor
  • Sensor: 12 million effective pixels, CMOS 1/2.3" (6.17 x 4.55 mm)
  • Max image size: 4000 x 2248
  • 8x optical zoom lens, 28-224mm (35mm equiv)
  • ISO Auto 80, 100, 200, 400, 800, 1600, 3200, 6400
  • Optical Image Stabilization
  • 2.8"-inch touch screen LCD, 461,000 pixels
  • Storage types microSD/microSDHC/microSDXC

Firmware info[]


CHDK Specialties[]

The Powershot N Facebook® Ready needs special steps when creating an SD card using STICK .  See this link :  Installing CHDK on a Canon N Facebook Camera .

If using the camera with a USB Remote Cable , be aware that the camera battery is charged via the USB port and thus may draw a lot more current than other Canon Powershot cameras.  Existing USB remote trigger devices may not work with this camera.

For Developers[]

General Info[]

  • the camera will attempt to autoboot (SD card lock method) when :
    • the microSD card cover is left open AND
    • the microSD card has "BOOTDISK" at the appropriate place in the boot sector for the card format (FAT16 vs FAT32) AND
    • a valid DISKBOOT.BIN file is located in the root of the microSD card file structure.
  • to enter <ALT> mode,  quickly press the "wifi" button located immediately above the playback button
  • the camera will start when USB power is applied to the USB port,  in addition to the normal power switch or playback switch startup.
  • when started via the playback button,  the camera will not switch to shooting mode when the shutter button (ring?) is pressed.  Shooting mode can be entered by a second press of the playback button.


Power LED on:

*(int*)0xc022c30c = ( (*(int*)0xc022c30c) & 0xffffffcf ) | 0x20;

Power LED off:

*(int*)0xc022c30c = (*(int*)0xc022c30c) & 0xffffffcf;

(thanks to srsa_4c for that)

Porting Process & Links[]
