This article describes the initial procedure of loading a dump to IDA disassembler.

Preparing[edit | edit source]

It is assumed that you have IDA (Interactive Disassembler) installed on your machine.

To semi-automate initial stage you need to download and install FLIRT-signatures and IDC-scripts. You can get them here and also in the "Development" folder here.

  • Note for DryOS cameras:
Since the original CHDK.idc script does not run all sub scripts correctly, there's a modified versions of the IDC scripts: [IDA_CHDK-idc-DryOS-singlerun.7z. The main script (CHDK.idc) runs all other scripts automatically, manual definition of the ROM_START address is not required anymore (MinEA() used instead).

Copy file "sig/CanonFW_A-Series.sig" from the archive to "<PATH_of_IDA_installed>/sig/arm/". Unpack the IDC folder to whatever you want.

Running of IDA[edit | edit source]

Start IDA application. Upon IDA loaded create a new database. You can do it by pressing NEW button on 'Welcome' window. Or through menu: 'File->New...'. Choose the dump file ('PRIMARY.BIN') to load.

IDA 01OpenIDA.png


Choose 'Binary/Raw File' format under 'Various files' tab.

IDA 02New.png


'Loading Wizard' will appear. Leave the 'Analysis options' unchecked.

Note: While attempting to port a camera using IDA 5.2, I have found that I have to check this option in order to get a good listing. (Mariush 20:25, 14 February 2009 (UTC))

IDA 03Wizard 01.png


Choose 'ARM processor ARM' as target platform.

IDA 04Wizard 02.png

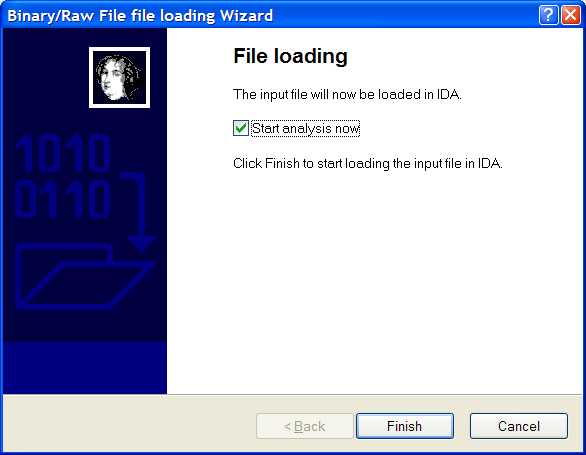

Leave the 'Start analysis now' checked. Press 'Finish' button.

IDA 05Wizard 03.png

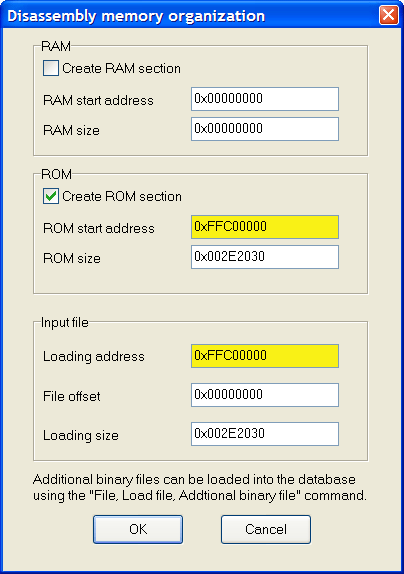

You have to specify the correct 'ROM start address' and 'Loading address'. The address depends on the camera. Currently known cameras use 0xFF000000, 0xFF810000 or 0xFFC00000. If the firmware was dumped with the ubasic dumper the correct address will be listed in CBDUMPER.LOG.

The loaded size must such that 'start address' + 'size' < 232, and the total size should be a multiple of 4. So for a camera that loads at 0xFFC00000, size should be 0x3FFFFC, not 0x400000 (C rather than F so the final address is 32 bit aligned.) If your dump is shorter, just use whatever size IDA defaults to.

ATTENTION: For DryOS Cameras you have to use the sizes & startadresses specified here: DryOS Porting - Load into IDA and Disassemble code

IDA 06Address.png

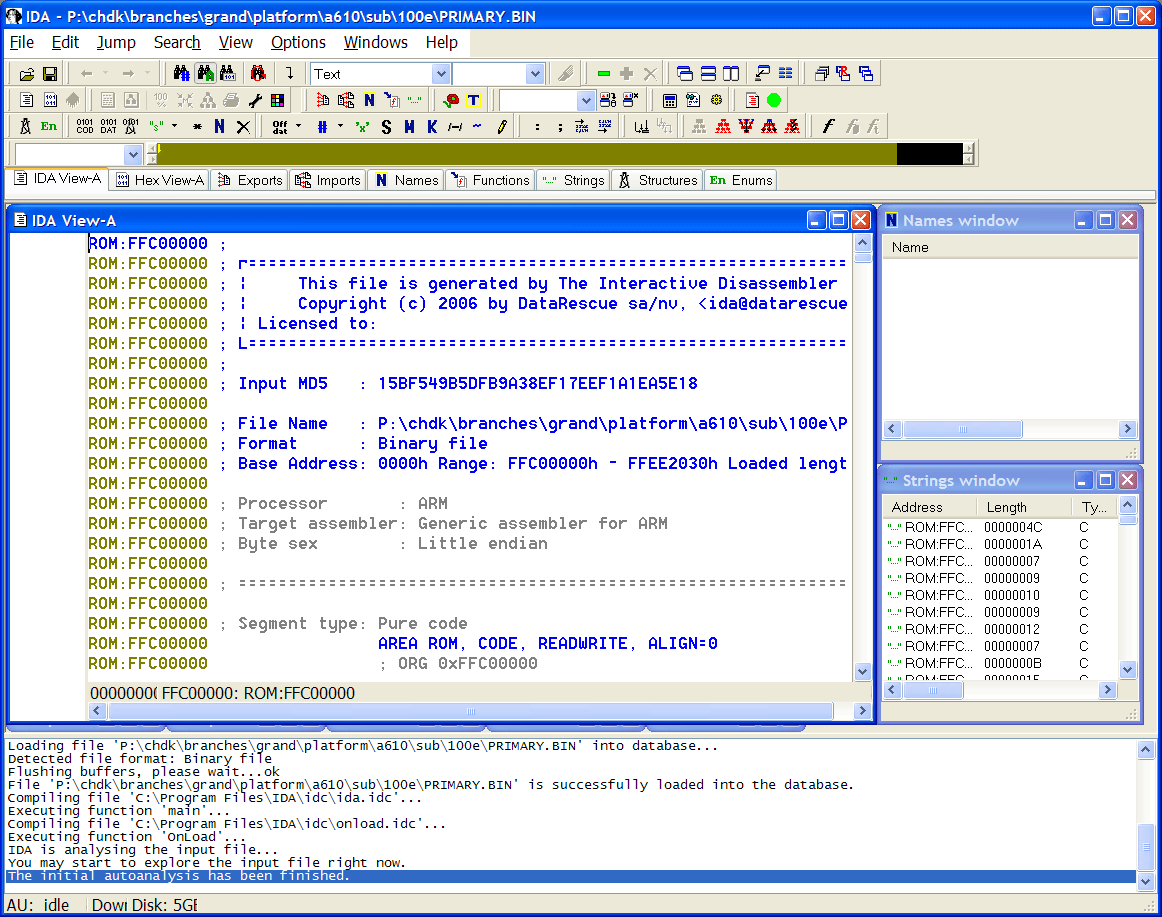

Wait a while until IDA loaded the file.

IDA 07AfterLoad.png


Click on 'Open signatures window' tool-button. Or press 'Shift+F5'.

IDA 08OpenFLIRT.png

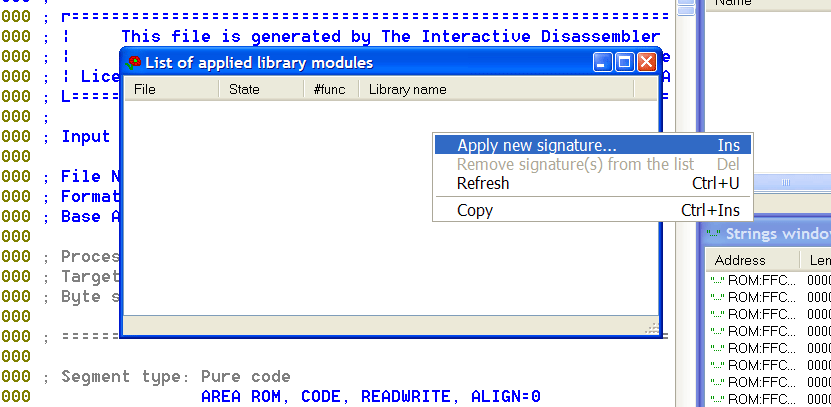

In window appeared click right mouse button and choose 'Apply new signature...' menu item.

IDA 09AddFLIRT.png

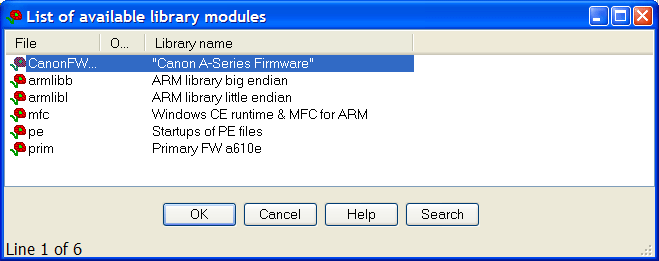

IDA will show the list of signature files are available for current processor. If you correctly installed the signatures file, as described in the preparing section, you will see "CanonFW_A-Series Firmware" item. Choose it.

IDA 10ChooseFLIRT.png


After a short analysis you will see the number of functions recognized. Then, you can close the window.

IDA 11AppliedFLIRT.png

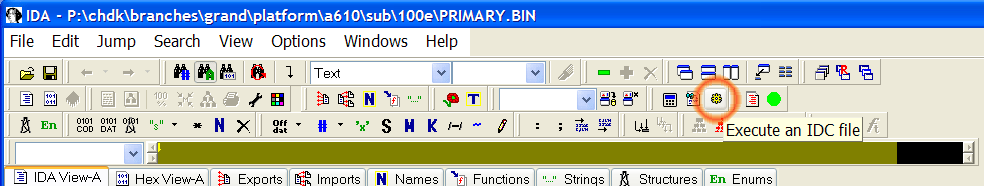

Click on 'Execute an IDC file' tool-button. Then choose the 'CHDK.idc' file saved in the preparing section.

IDA 12LoadIDC.png

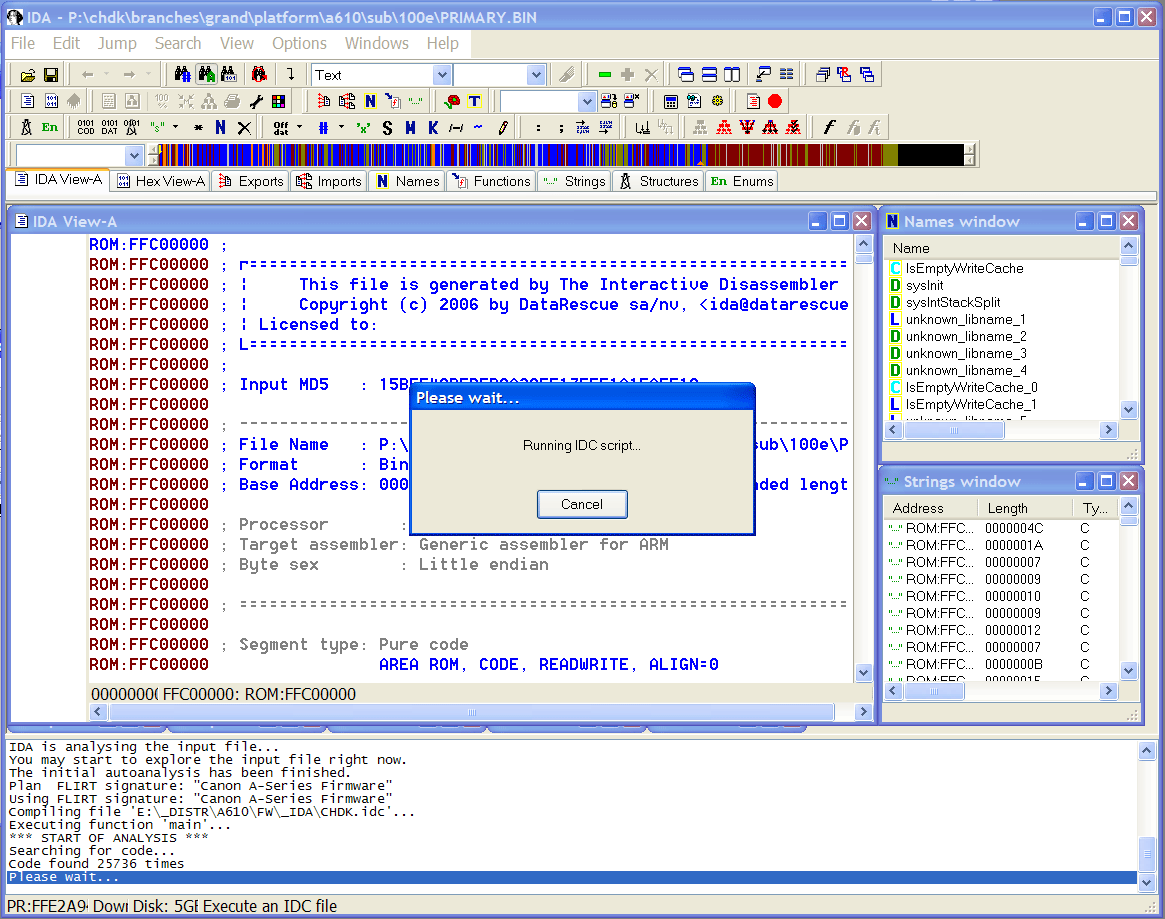

The script will run. It can take several minutes to complete. Please do not interrupt the IDA untill it finished.

IDA 13WaitForFinish.png


Now, the initial disassemling stage is completed. You can browse the code.

IDA 14Finish.png

Extended IDA debug scripts[edit | edit source]

There exist a number of IDC scripts to ease the code analysis (useful when you start hating these sub_DEADBEAF ;-)

The latest versions could be checked out from SVN or taken directly from http://tools.assembla.com/chdk/browser/trunk/tools/idc-scripts

scan-lib.idc[edit | edit source]

Helper methods. You have to change

 #define ROM_START   0xFF810000

to your f/w start address for all the scripts could work fine.

scan-event-procedures.idc[edit | edit source]

Prerequisite: A set of RegisterEventProcedure API should be found and named: RegisterEventProcedure, RegisterEventProcedureTable, ExportEventProcedure, RegisterEventProcedureNN, etc. Searches for the event procedures registration points and renames all subs to form eventproc_ or eventproc_export_ Note: some of the event procedure tables are stored in RAM, so to find more you have to load a RAM dump from you camera.

scan-event-procedures-list.idc[edit | edit source]

Prerequisite: scan-event-procedures.idc Walks through the f/w and collects all the eventproc names. Generates stubs_entry_ida.S.

scan-swinv.idc[edit | edit source]

Fixes some strange IDA ideas (where it thinks the data to be a code)

scan-symbol-info.idc[edit | edit source]

Prerequisite: DebugAssert name should be available Adds to the sub_xxxx names a meaningful part, basing this part on assert information: _sub_FF8145D0__SystemTime_c__156 Meaning its a some SUB in the SystemTime.c file at line 156. Renames ~2000 subs and makes it easier to orient in the code.

scan-tasks.idc[edit | edit source]

Prerequisite: CreateTask, CreateTaskStrictly should be available, CreateMessageQueue is optional Searches code for all tasks creation and renames task subs into task_Name. Also renames the task creation sub into taskcreate_Name. Then tries to search for the task-related message queues and rename them also.

resolve-tasks.idc[edit | edit source]

Prerequisite: *scan-tasks.idc* Helps to understand which tasks calls the function under the cursor. Adds to the function comment all the tasks it'll find via up-recursive reference walk.

Notes[edit | edit source]

  • By default, IDA will display some sequences of instructions as a macro, for example:
    MOVL    R3, 0x820A
movl is not actually an ARM instruction, and is not supported by all toolchains. Instead, it is actually a user friendly way of displaying:
    MOV     R3, #0x8200
    ADD     R3, R3, #0xA
To switch between the two methods, go to options -> general -> analysis -> processor specific analysis options and check or uncheck 'enable macros'. Note that IDA 5.3 displays MOV, not MOVL regardless of whether it is one instruction or two.
