The Powershot G10 was released in 2008 with a 14.7 megapixel CCD sensor as the successor to the Powershot G9. It has since been replaced by the Powershot G11 and Powershot G12, which both have a smaller sensor resolution but better light sensitivity.


CHDK is available for the Powershot G10 with firmware version 1.02a, 1.03b and 1.04a from the Autobuild Server


Technical Data[]

20080917 loRes g10 front

Powershot G10 Front

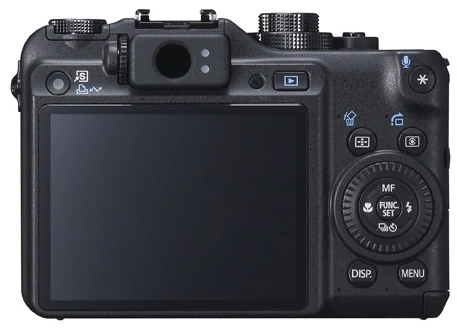

20080917 loRes g10 back

Powershot G10 Back

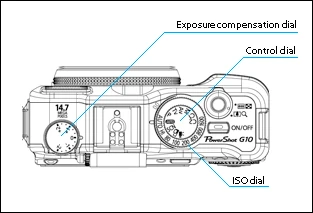

Powershot G10 Controls

  • Digic IV image processor
  • DryOS operating system
  • 14.7 megapixel CCD sensor
  • 1/1.7 sensor size
  • 34 MP/cm² pixel density
  • 4416 x 3312 max resolution
  • 5x wide-angle (28mm) optical zoom lens 28-140mm (35mm equiv), F2.8-4.5
  • dedicated AE compensation dial
  • RAW image recording
  • 3 inch LCD, high resolution, 461,000 pixels
  • ISO 80-1600
  • Power: rechargeable Li-ion battery NB-7L
  • Weight (without batteries): 350 g, Dimensions: 109 x 78 x 46 mm

Firmware info[]

As in other Canon PS case, the ver.req file works as well in this model. vers.req does the same job plus it reports the number of shots. Press FUNCSET and DISP simultaneously: It shows the following:

Canon  Powershot G10
P-ID:318-F  PAL D
Firmware Ver GM1.00F
Aug 22 2008   10:55:13

subsequent press of DISP (while still holding FUNCSET) reveals:

Adj. Ver.009.006
Aug 22 2008   10:55:13

and another press of DISP (while still holding FUNCSET) brings up this:

Adj. Ver.009.006
IS Firm Ver.   2.08
IS Param Ver.  2.02

For Developers[]

LED addresses[]

0xC02200D0: ISO speed lamp
0xC02200D4: Shortcut/Print lamp/button
0xC02200D8: Exposure compensation lamp
0xC02200DC: Power lamp/button

Firmware dumps[]


Download location for firmware dumps:
P&S firmware dumps mirror

Official firmware update[]

In February 2009, Canon released a firmware update for the G10. You can find it (and description of what it does) here. It is labeled and the camera reports version GM1.02A after the update. The firmware date is reported as "Dec 2 2008". The update is based on camera serial number but seems to apply to firmware releases 1.00F and 1.00H, converting them to 1.02A on the camera.

There may also be a physical mark on the battery cover of G10 cameras if the firmware was upgraded to by Canon; details here.
