Canon EOS 1000D \ Rebel XS \ Kiss F

The EOS 1000D released on July 8'th 2008.


The EOS 1000D is NOT ported, there's NO CHDK or hacks available for this camera.

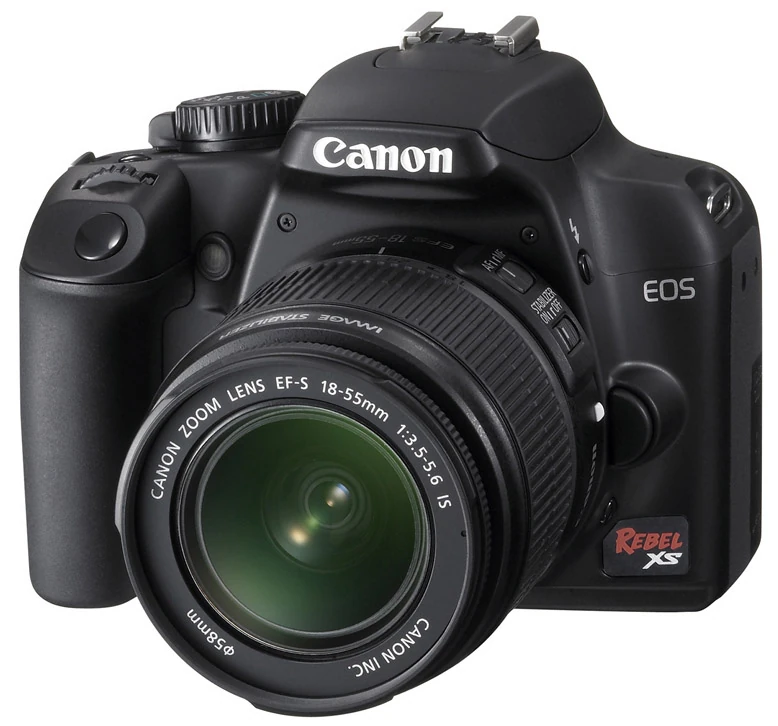

EOS 1000D with 18-55 kit lens

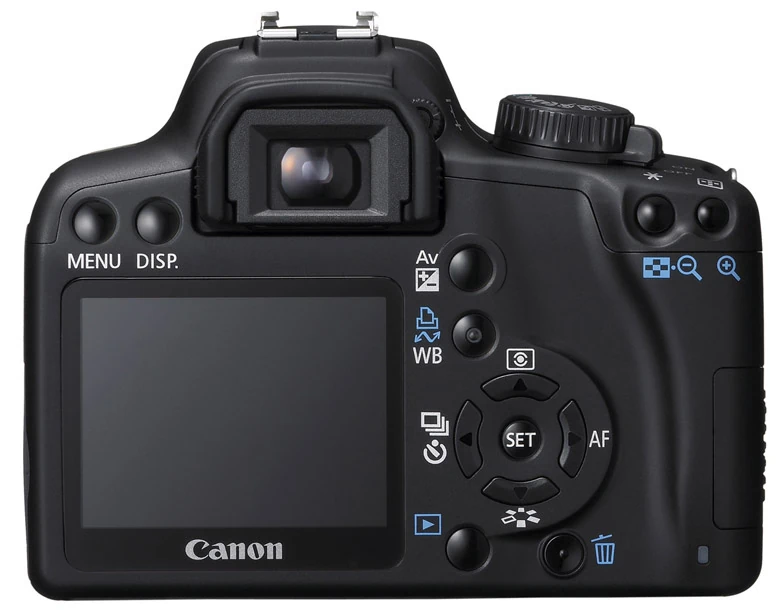

EOS 1000D back


Reviews and Specifications[edit | edit source]

Technical Data[edit | edit source]

  • Digic III image processor (general purpose CPU on digic II-IV is arm946E-S, configured little endian, no MMU - http://chdk.setepontos.com/index.php?topic=2310.msg58789#msg58789)
  • VXworks operating system
  • Sensor: 10.1 million effective pixels, 22.2 x 14.8 mm (3.28 cm²) CMOS sensor, 3.1 MP/cm² pixel density
  • 2.5 inch LCD, 230,000 pixels
  • ISO 100-1600
  • Shutter speed: 30 - 1/4000 sec
  • Power: rechargeable Li-ion battery LP-E5, 1080 mAh
  • Weight (without batteries): 502 g (1.1 lb)
  • Dimensions: 126 x 98 x 62 mm (5.0 x 3.9 x 2.4 in)

Development[edit | edit source]

  • Development thread: [1]
  • Source code:
hg clone https://bitbucket.org/coutts/1000d_dev

Conceivable feature additions with hacking[edit | edit source]

There are no developers working on this (can some one point to the exact forum where this is happening?)so this is just a hypothetical list of features that may be possible to unlock or enable in the 1000D.

Firmware features available in the 450D:

  • Increase continuous RAW fps count to 3.5 fps or more
  • Spot metering
  • Highlight Tone Priority
  • Faster shutter speed
  • Real time depth of field / hyperfocal calculator
  • Live histogram (in live view)
  • Live view in auto mode

Other Features:

  • Autofocus micro adjustment
  • Video Recording on SD card Directly
  • Remote flash controller
  • Iso 3200 expandable a 6400
  • Autofocus in selection of priority face

Firmware info[edit | edit source]

Version: 1.0.6 (e6kr5106.fir)

Tool: Firload (http://pel.hu/down/FIRload.exe)

OUTPUT:
---flasher1---
0x000: modelId = 0x80000254, (Canon 1000D / Rebel XS)
0x010: version = 1.0.6
0x020: cheksum = 0xc785145d OK
0x024: flasher1 header start = 0xb0
0x028: flasher1 payload start = 0x120
0x02c: flasher2 start = 0xffffffff
0x030: firmware start = 0x1a0190
0x034: 0xffffffff
0x038: file size = 0x71600c (7,430,156 bytes) OK
0x03c: 0x0
0x040: xor seed = 0x02695585
0x044: 0x00000004 0x00000000 0x00000020 0x00000024
0x054: 0x00000044 0x000000b0
0x05c: fw start-0xb0 ??? 0x1a00e0
0x060: firmware start = 0x1a0190
0x064: firmware length = 0x575e7c
0x068: hmac-sha1 = 595534e245573955137bd2564c1aa014e95e3246
0x088: hmac-sha1 = e32af177d3cdbcb4f475b7af1cd8b8f8d6314d27
0x09c - 0x0af: 0x0
---flasher1 header---
0x0b0: flasher1 payload length = 0x1a0070 starts at 0x120
0x0b4: flasher1 ??? = 0x1a0070
0x0b8: 0x0
0x0bc: xor seed = 0x80cb568
0x0c0 - 0x11f: 0x0
---flasher1 payload---
0x120 - 0x1a018f: (ciphered data)
---firmware---
0x1a0190: (+0x000), firmware header start = 0xc
0x1a0194: (+0x004), firmware payload start = 0x7c
0x1a0198: (+0x008), total firmware length = 0x575e7c. starts at 0x1a0190
---firmware header---
0x1a019c: (+0x00c), firmware payload length = 0x575e00
0x1a01a0: (+0x010), firmware ??? = 0x575df6
0x1a01a4: (+0x014), 0x0
---firmware payload---
0x1a020c (+0x07c) - 0x71600b: (encrypted data)

Version information[edit | edit source]

Latest version reported by users: 1.0.7
Latest version available from Canon: 1.0.7
http://web.canon.jp/imaging/eosd/firm-e/eosdigital5/data/e6kr5106.exe

For Developers[edit | edit source]

LED addresses[edit | edit source]

#define LED_RE 0xC02200E0  // Red LED (Card Access)
#define LED_BL 0xC02200E8  // Blue LED (Print Button)

Available firmware dumps & updates[edit | edit source]

  • EOS 1000D fw 1.0.5 firmware dump

Alternative download location for firmware dumps:
DSLR firmware dumps mirror

Available firmware analysis[edit | edit source]


Program to save video for[edit | edit source]

Recording is available using program that can be found on following url.
Connect your camera to PC, download program and run it.

Web page: http : / / valexvir.narod.ru/


Example of the video saving:

http : / / www.vimeo.com/4927410
